grain colour sorter optical sorting machine optical sorter

Place of Origin: Zhejiang, China (Mainland)
inquire
Add to My Favorites
HiSupplier Escrow
Share |

Product Detail

Model No.: HJ-C4R


Grain Color Sorte

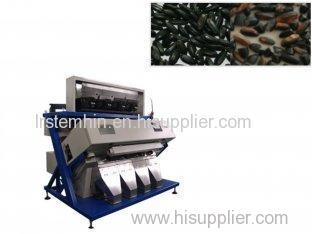

Grain Color Sorter Machines With Self Checking System Channel 252



1. Using imported 2048 pixel true color CCD linear array camera, recognition accuracy up to 0.08mm, and take machine vision into production in this industry;



2. Using linear array image scanning technology , high-speed intelligent image acquisition system;



3. Using the most advanced U.S. technology for programming device, and the embedded software operation platform make system more stable, response faster and function more powerful;



4. The system is added to special algorithm, such as shape selection, and area algorithm,   to solve problems like sorting some kinds of beans according to their shape , color , and area at the same time and expand the scope of application of color sorter , and make multi-function , multi species of color sorting come true;



5. Using the most advanced LED optics technique in the world, machine has longer life , better uniformity, more wide color areas, and lower power consumption, the power consumption is only 10-30% for general lighting ;



6.Using different slide according to different materials, no need to change light source, and it is suitable for a variety of industrial products, beans, nuts, grains and other particles and sheet material;



7.Using of V type , U type , flat slide , and special technology to ensure product stability and reliability;



8.Integrating more than 10 global exclusive patent technology.





Applications:



Brown Rice, Agriculture, Rice Sorting, Grading





Competitive Advantage:



1.2048 pixel CCD camera and photo processing technology



2.Recognition accuracy up to 0.08mm



3.Passed CE, UL, ETL, ISO9001



4.LED TFT real 8.4 inch screen



5.Self checking system





Specifications:



Model

HJ-C4R

Machine weight (kg)

950

Dimensions(L×W×H)cm

180×142×143

Channels

252

Materials handling capacity (T/H)

2.5-3.5

Accuracy of color selection

≥99.5%

Best "out of ratio"

>20:1

Host power

1.4

Air pressure

≥0.6Mpa

Air consumption (L/min)

700-2500

Power supply voltage

220V/50HZ
